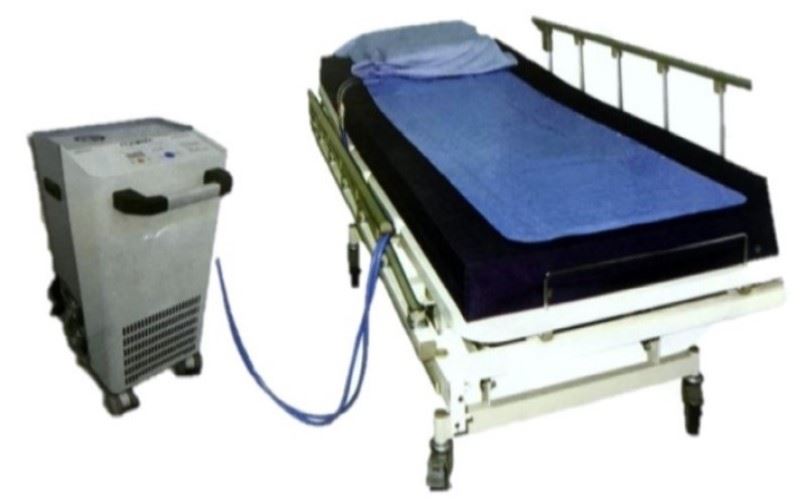

A medical-grade professional product as a body temperature guard
Model No.: BHC-501 used for medical treatments, long-term care, homestay, etc.
| Dimensions of the host (main machine) | ： | 40cm (W) X 80cm (H) X 36cm (D) |
| Weight of the host (main machine) | ： | 30kg ± 5% (Maximum) |
| Power supply | ： | 110V/60Hz ~ 220V/50Hz |
| Watertemperature controlling range | ： | 15° C〜42°C |
| Operating system | ： | Microcomputer control for setting in various states, such as changing the display of current temperature in the water tank and the setting of temperatures thereof. |
| Temperature control system | ： | Compressor capacity 228W (R134A eco-friendly refrigerant) Heating system 600W |
| Circulation system | ： |
Water tank capacity : 4L Magnetic induction motor Flow rate : 40GPH〜32G PH |
| Display range | ： | Water temperature 0°C〜50°C |
| Warning system | ： | The panel directly indicates the error status in English and with a buzzer. |
| Security system | ： | Five-power-system protection |
| A. Current overload protection system for the host (main machine) | ||
| B. Control circuit protection system | ||
| C. Independent mechanical temperature protection switch | ||
| D. Two-stage power-off protection for over high and over low temperature | ||
| E. Water temperature sensor for warning low water level in the tank | ||
| Applicable to | ： |
Intensive care units (ICU) in hospital, observation(recovery)rooms, burn-care centers, long-term care at home, stroke and dialysis patients, home care centers, postpartum care centers, homes for the aged, nursing homes, nursing care centers, etc. |
Additional accessories：
| 1. |
Red and white quick connector 2-meter silicone connecting tube |
.jpg) |
| 2. | Mattresses (TPU material) available: Dimensions of LVC-201 54cm (W) X 70cm (D) X 1cm (Thickness) Dimensions of LVC-202 60cm (W) X 162cm (D) X 1cm (Thickness) |
.jpg) |
